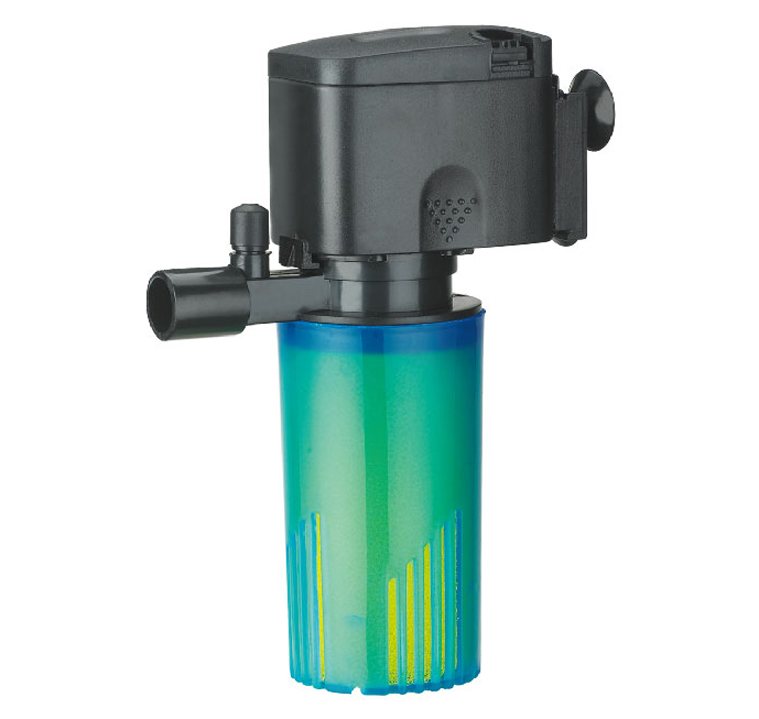

This product consists of submersible pump and sprinking bar biochemical filter.
The pump body is made from die-cast ABS engineering plastic and can endure shock and rust.
The motor is sealed in the body shell with resin. with excellent waterproof performance and high isolation intensity, it is safe and reliable.
Multi-functional design, various purposes in a machine pumping, adding oxygen, it is most suitable for cultivating fine nitrobacteria and cleaning the water.
Do not let the pump run dry. Do not lift the pump by the power cord.
Operate pump completely submerged for proper cooling.
The supply cord is damaged, the appliance should be discarded.
Disconnect the appliance from supply mains before putting hands into water.
The maximum depth immersed in water for the appliance is 0.5m. PERFORMANCE A clogged or dirty intake screen will greatly reduce performance.
If the pump is used on a dirty surface, raise it slightly to reduce the amount of debris contacting the intake. If less flow is desired, adjust the flow control lever.
MAINTENANCE To clean the pump, remove the front plate and the impeller.
Use a small brush or stream of water to remove any debris.
CAUTION:IT THE PUMP FAILS TO OPERATE,CHECK THE FOLLING Check the circuit breaker and another outlet to ensure the pump is getting electrical power.
NOTE: Always disconnect from electrical outlet before handing the pump.
Check the pump discharge and tubing for kinds and obstructions Algae build up can be flushed out with a garden hose.
Remove the pump inlet to access the impeller area.
Turn the motor to ensure it is not broken or jammed Monthly maintenance will add to your pump’s life.
NOTE: Ensure that the electrical cord loops below the electrical outlet to form a Drip Loop This will prevent water from running down the cord into the electrical outlet. the electrical outlet.
SPECIFICATION:- Model : RS-2001
Voltage : 220-240V/50Hz
Power : 18W
H-max : 1000 L/H
